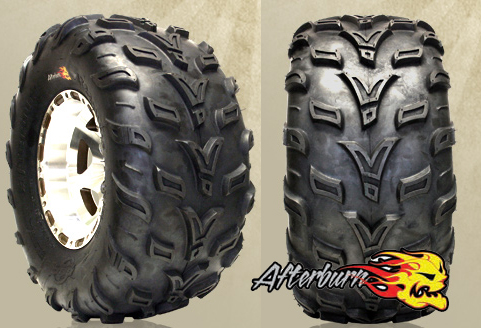

GBC Afterburn Atv Tires

Afterburn is a new high performance radial ATV tire that delivers uncompromised traction in
both mixed and hard packed terrains. With its unique and aggressive tread design,
Afterburn promotes superior straight line and high speed cornering capabilities,
and its radial carcass construction also provides an optimum smooth ride.

AFTER BURN: Product Specifications

	PART	SIZE	PLY	TREAD DEPTH (32NDS IN.)	OD	SW	RIM WIDTH	PSI	WEIGHT (LBS)	MAX LOAD
	AE092011AB	20 X 11.00-R9	6	16	20	11	9	7	17	341
	AE092211AB	22 X 11.00-R9	6	16	22	11.2	9	7	17	370
	AE102011AB	20 X 11.00-R10	6	16	20	10.8	9	7	19	280
	AE102107AB	22 X 11.00-R10	6	16	22.4	10.8	9	7	19	370
	AE102208AB	21 X 7.00-R10	6	16	21.2	7	5.5	7	12	235
	AE102211AB	22 X 8.00-R10	6	16	22	8	6	7	14.8	240
	AE102307AB	23 X 7.00-R10	6	16	23	7	5.5	7	14.8	275
	AE122508AB	25X8.00-R12	6	18	25.2	8.3	7	7	17.8	340
	AE122510AB	25X10.00-R12	6	18	25.4	9.9	8	7	22.7	410
	AE122608AB	26X8.00-R12	6	18	25.9	8.3	7	7	18.5	460
	AE122610AB	26X10.00-R12	6	18	25.9	9.9	8	7	23	560
